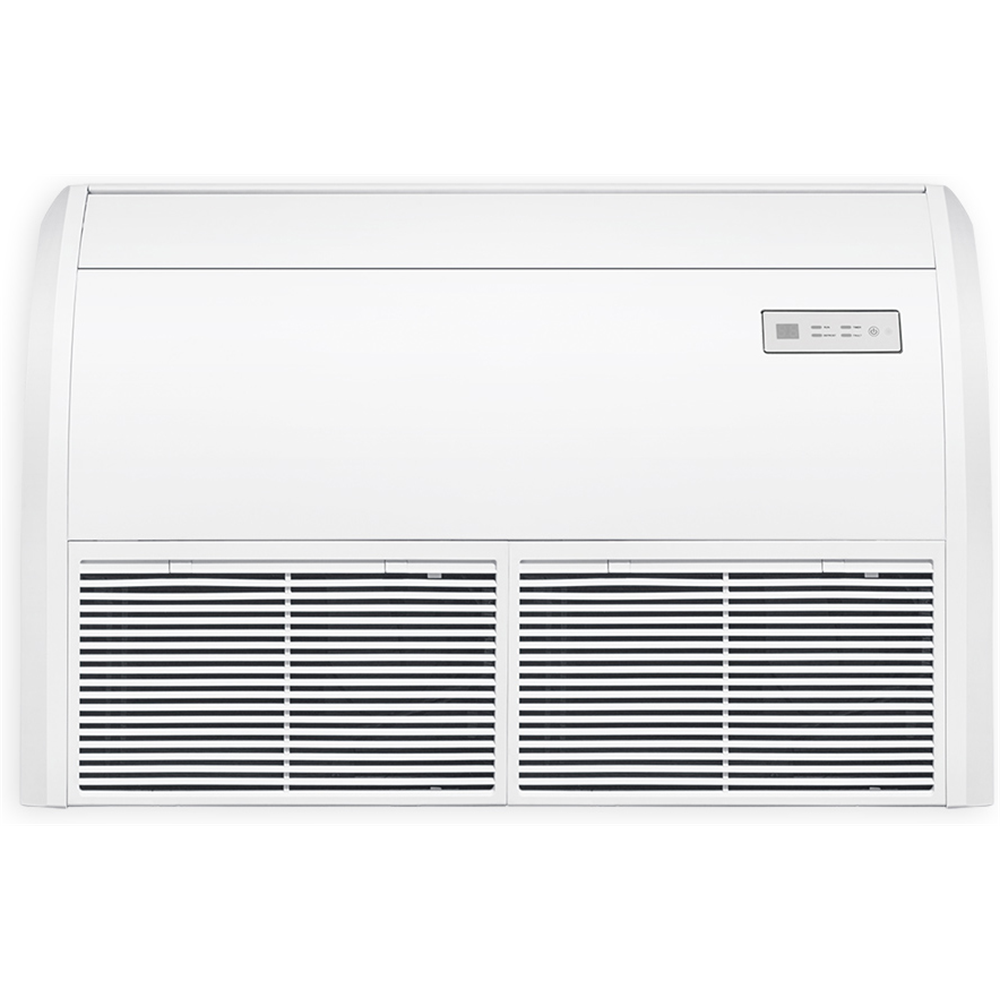

TCL 4.0 TON CEILING & FLOOR INVERTER AC Model TCC-48ZHRH/DV

The TCL TCC-48ZHRH/DV is a 4.0-ton ceiling-and-floor inverter air conditioner designed for powerful year-round cooling and heating in large residential or commercial spaces.It delivers a declared cooling capacity of 14.07 kW and a declared heating capacity of 16.12 kW, with R32 refrigerant and A++/A+ seasonal energy performance.Flexible installation, 3D airflow, Wi-Fi control, LED display, dual-direction drainage, and convenient maintenance make it a practical high-capacity comfort solution.

Benefits

• Flexible installation: Suitable for ceiling or floor installation in larger rooms and commercial spaces.
• Powerful year-round comfort: Provides high-capacity cooling and heating with inverter technology.
• Energy efficient: SEER 6.1, SCOP 4.0, and A++/A+ energy classification.
• Comfortable airflow: 3D airflow circulation and dual-direction condensate drainage.
• Smart operation: Wi-Fi control, LED display, timer, energy-saving mode, and power-down memory.
• Easy maintenance: Convenient maintenance design with an ultra-thin indoor unit.

Specifications

• Brand: TCL
• Model: TCC-48ZHRH/DV
• Type: Ceiling & floor inverter air conditioner
• Capacity: 4.0 ton
• Declared cooling capacity: 14.07 kW (3.52–15.24 kW)
• Declared heating capacity: 16.12 kW (4.10–17.00 kW)
• Energy performance: SEER/SCOP 6.1/4.0 W/W
• Energy class: A++/A+
• Refrigerant: R32
• Indoor sound pressure: 52 dB(A)
• Outdoor sound pressure: 60 dB(A)
• Power supply: Indoor 220–240 V~/50 Hz/1 phase; outdoor 380–415 V~/50 Hz/3 phase
• Cooling operating current: Indoor 7.3 A (2.3–11.2 A); outdoor 6.3 A (1.7–9.8 A)
• Heating operating current: 8.9 A (2.1–12.0 A)
• Maximum current: 12.0 A
• Indoor air circulation: 2,300/2,300 m³/h (cooling/heating)
• Outdoor air circulation: 5,600 m³/h
• Application area: 50–95 m²
• Connecting pipe: Gas 5/8 in; liquid 3/8 in
• Maximum refrigerant pipe length / level difference: 75/30 m
• Operation temperature range: 16–31°C
• Ambient temperature range: Outdoor cooling −15 to 58°C; outdoor heating −25 to 24°C; indoor cooling 17–32°C; indoor heating 0–30°C
• Net dimensions: Indoor 1635 × 675 × 235 mm; outdoor 1010 × 858 × 436 mm
• Net/gross weight: Indoor 38/43 kg; outdoor 77/89 kg
• Packing dimensions: Indoor 1710 × 748 × 305 mm; outdoor 1135 × 970 × 530 mm
• Loading capacity: 26/60/66 units (20'/40' GQ/40' HQ)
