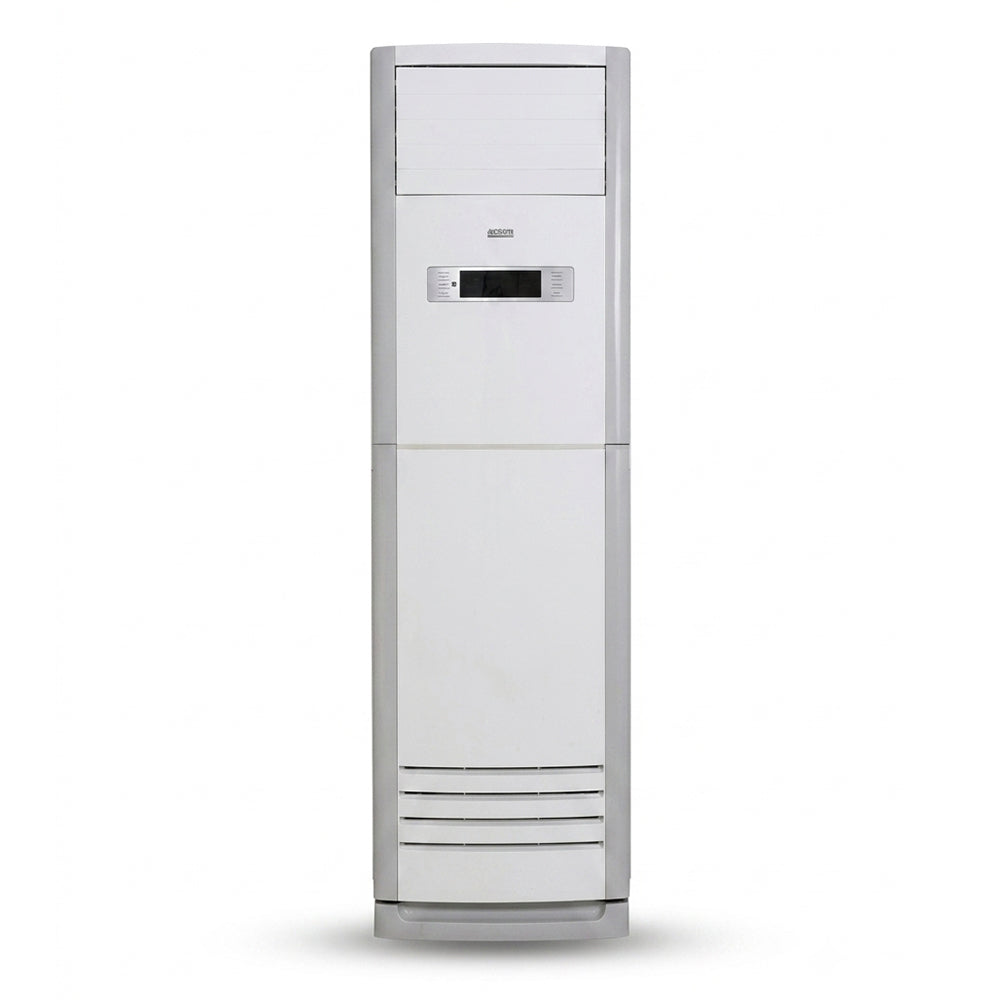

The ACSON A5FS50BR‑M is a 4.0 Ton Floor Standing Air Conditioner designed for powerful cooling and heating performance in large spaces. Built with a Scroll Compressor and R410A refrigerant, it ensures high efficiency, reliability, and eco‑friendly operation. Its advanced airflow system, self‑diagnosis feature, and anti‑corrosion protection make it ideal for commercial and residential environments requiring consistent comfort.
- 3D Air Flow — Horizontal and vertical swing ensures uniform cooling throughout the room.
- Silver Ion Filter (Optional) — Effectively sterilizes bacteria by decomposing their cell walls for cleaner air.
- Self‑Diagnosis & Auto‑Protection — Automatically shuts off during abnormal operation and displays error codes for quick maintenance.
- Golden Fin Technology — Anti‑corrosive coating protects the condenser from salty air, rain, and other elements, extending lifespan.
- High Efficiency — EER of 2.65 W/W and COP of 3.01 W/W for energy‑optimized performance.
- Quiet Operation — Indoor noise level as low as 46 dB(A) ensures peaceful comfort.
- Durable Build — Heavy‑duty design with 6,300 W max input consumption and 11 A max current capacity.
- Reliable Cooling & Heating — 48,000 Btu/h cooling and 55,000 Btu/h heating capacity for year‑round performance.
- Model: A5FS50BR‑M (Indoor) / A5LC50CR‑M (Outdoor)
- Type: Floor Standing AC
- Cooling Capacity: 48,000 Btu/h
- Heating Capacity: 55,000 Btu/h
- Power Supply: 380–415 V, 3 Ph, 50 Hz
- Input Power (Cooling/Heating): 5,300 W / 5,350 W
- Operating Current (Cooling/Heating): 9.5 A / 10 A
- EER: 2.65 W/W
- COP: 3.01 W/W
- Compressor Type: Scroll
- Indoor Air Flow (Hi/Lo): 1,488 / 1,180 m³/h
- Indoor Noise Level (Hi/Lo): 54 / 46 dB(A)
- Outdoor Noise Level: 63 dB(A)
- Refrigerant Type: R410A (3.3 kg)
- Refrigerant Piping: 9.52 mm (3/8 in) / 19 mm (3/4 in)
- Max Pipe Length: 50 m
- Max Level Difference: 30 m
- Indoor Dimensions (W×D×H): 540×410×1825 mm
- Outdoor Dimensions (W×D×H): 900×350×1170 mm
- Net/Gross Weight (Indoor/Outdoor): 52.9 / 69.4 kg | 98.6 / 109.3 kg
